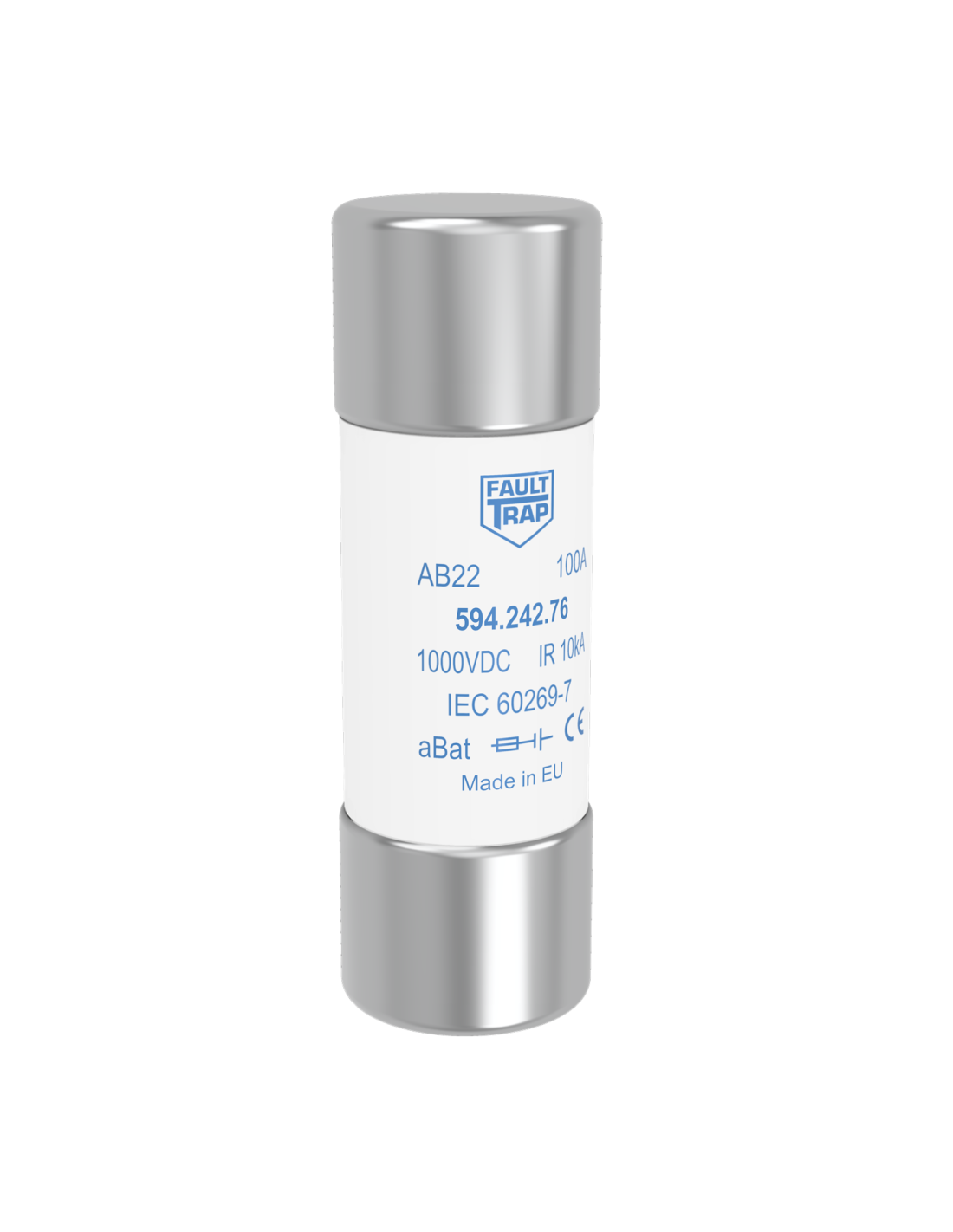

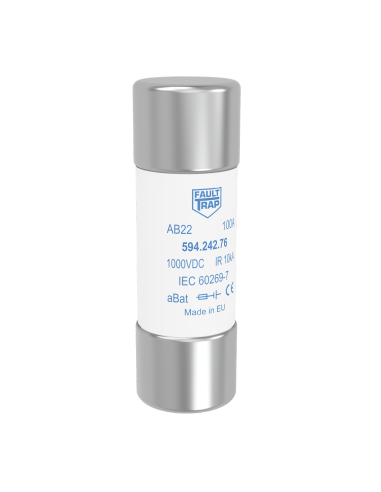

Fuse 1000VDC aBat 100A 22x65mm
594.242.76
| Series name | AB22 | Power loss (W) | 18 |
| Rated current In (A) | 100 | Class | aBat |
| Rated Voltage Un DC (V) | 1000 | Rated breaking capacity I1 DC (kA) | 10 |
| Time costant L/R (ms) | 1-3 | Fuse Connection/Terminal type | Cylindrical |
| Melting I²t value (A²s) | 4520 | Total clearing I²t @Un DC (A²s) | 25000 |
| Minimum breaking current (A) | 800 | Applicable standards | IEC |
