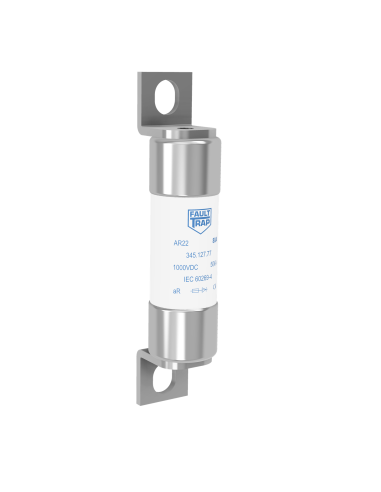

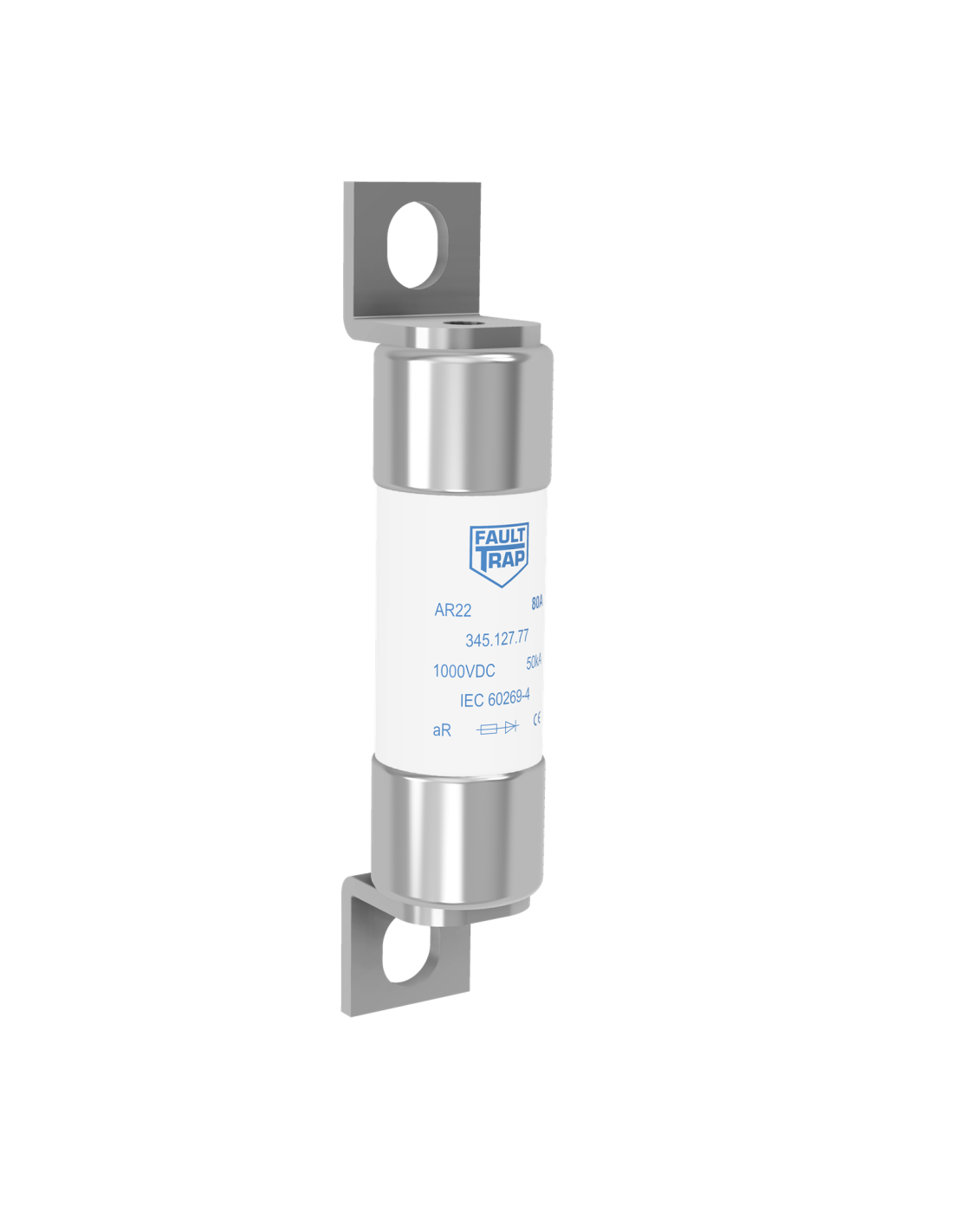

Fuse 1000VDC aR 80A 22x65mm surface mount with fixing ditance 87mm
345.127.77
| Series name | AR22 | Power loss (W) | 14,5 |
| Rated current In (A) | 80 | Class | aR |
| Fuse Dimension (mm) | 22x65 | Rated Voltage Un DC (V) | 1000 |
| Rated breaking capacity I1 DC (kA) | 50 | Time costant L/R (ms) | 1-3 |
| Fuse Connection/Terminal type | Cylindrical | Melting I²t value (A²s) | 2950 |
| Total clearing I²t @Un DC (A²s) | 15400 | Applicable standards | IEC |
