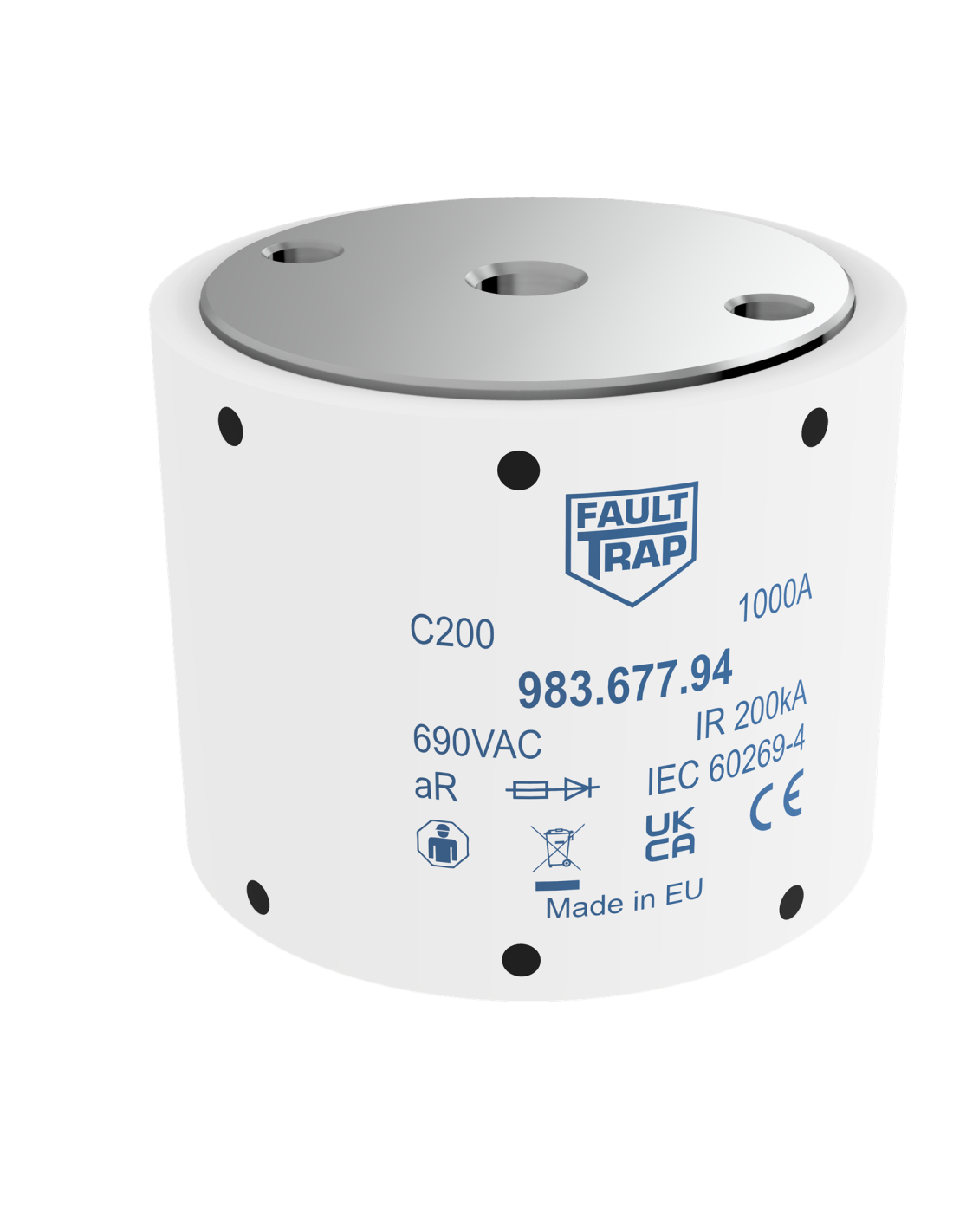

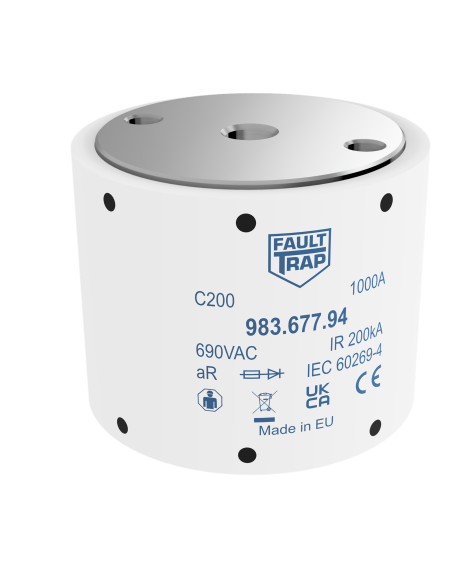

Fuse 690VAC aR 1000A size 2 61x50mm M10 flush end terminals
983.677.94
| Series name | C200 | Power loss (W) | 110 |
| Rated current In (A) | 1000 | Class | aR |
| Rated Voltage Un AC (V) | 690 | Rated breaking capacity I1 AC (kA) | 200 |
| Fuse Dimension (mm) | 61x50 | Fuse Connection/Terminal type | Screw fixing |
| Melting I²t value (A²s) | 226000 | Total clearing I²t @Un AC (A²s) | 1250000 |
| Applicable standards | IEC |
