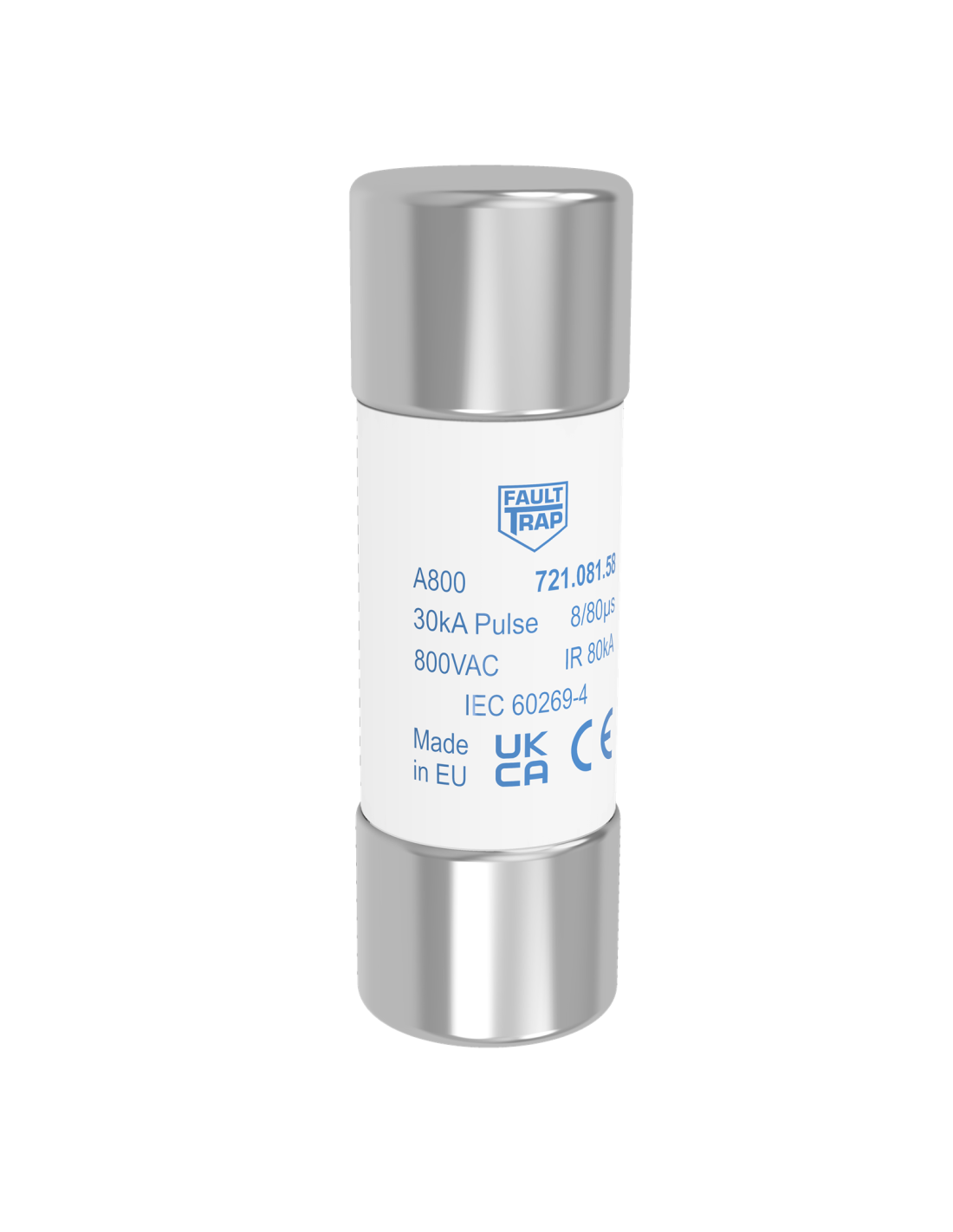

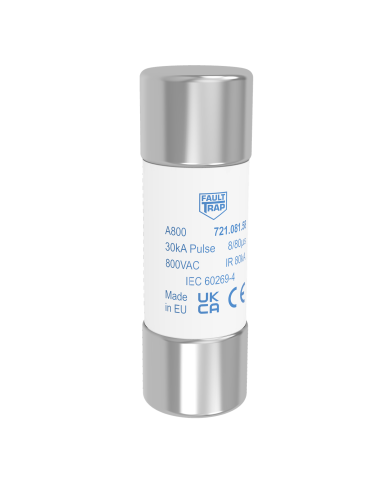

Fuse 800VAC 22x65mm for protection of SPD with Iimp up to 8kA 10/350µs and In up to 30kA 8/20µs

Reference 721.081.58

Technical Properties

Series name	A800	Rated Voltage Un AC (V)	800
Rated breaking capacity I1 AC (kA)	80	Fuse Dimension (mm)	22x65
Fuse Connection/Terminal type	Cylindrical	Melting I²t value (A²s)	36000
Total clearing I²t @Un AC (A²s)	250000	Applicable standards	IEC

Download

3D Datasheet
